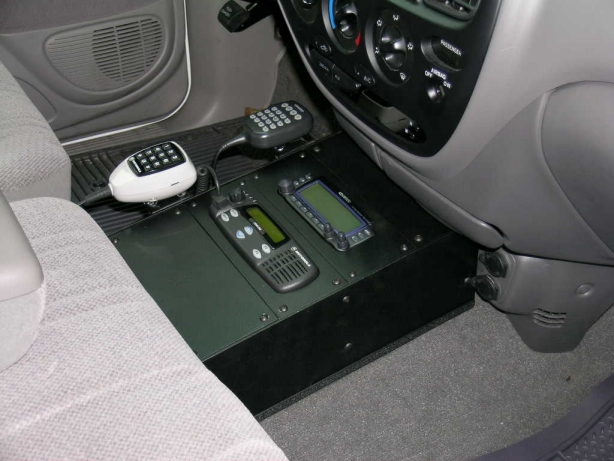

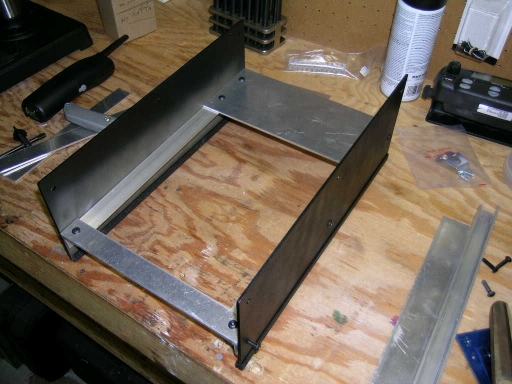

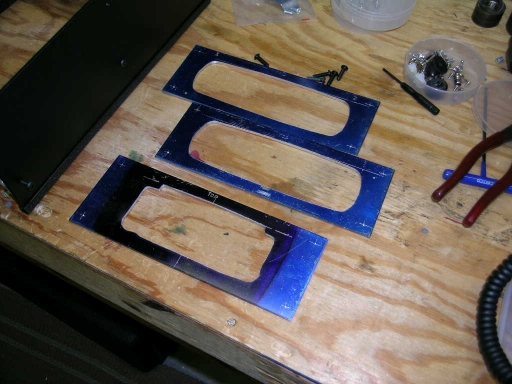

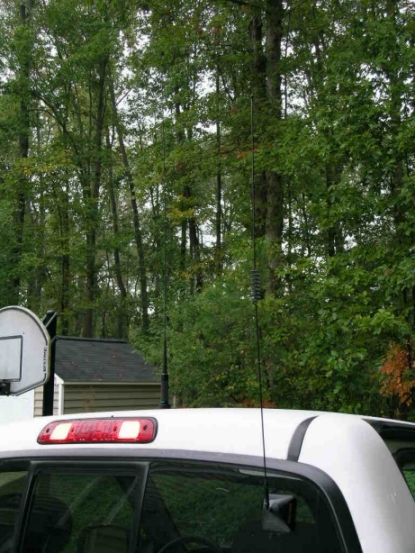

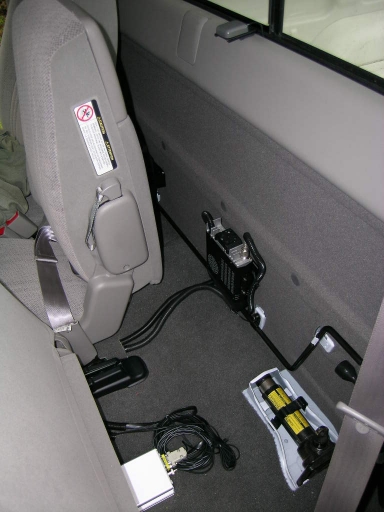

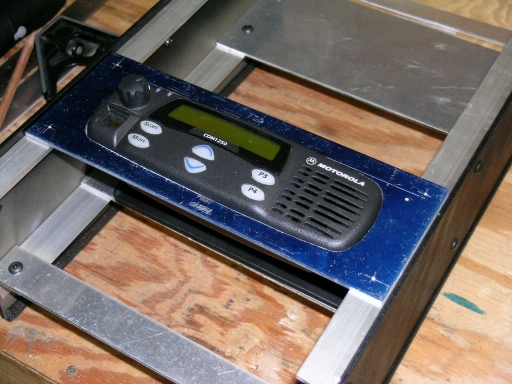

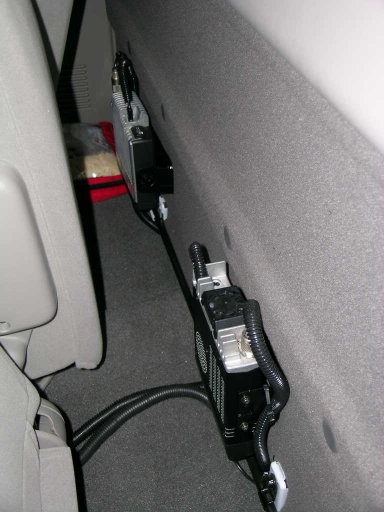

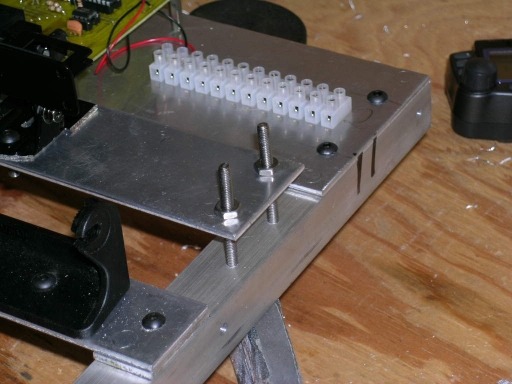

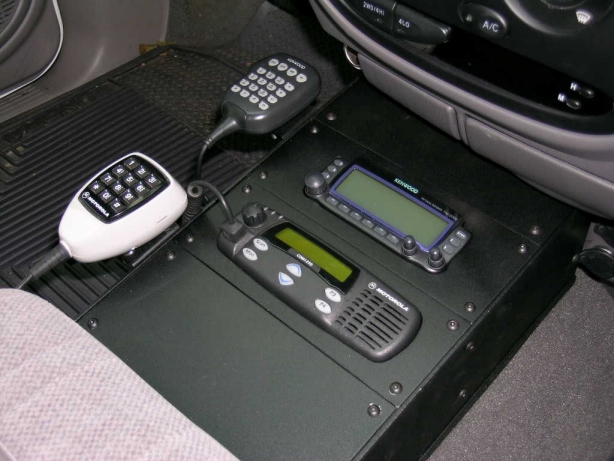

Radio console is custom built by me. Radio’s installed are Motorola CDM1250 UHF and Kenwood TM-D700 with GPS. GPS connected to D700 is Motorola Oncore with TAPR GPS interface mounted in old Motorola cell phone transceiver enclosure. Antenna for GPS is mounted on interior of truck not giving the best performance but does OK. Antennas for radio’s are a Glass mount Larson Dual Band and NMO roof mount Diamond Dual Band. CDM is connected to Diamond and D700 to Larson. Phase 2 of this project will be installation of CDM1250 VHF with Phase 3 installation of XTVA for XTS3000 UHF. Below I have included pictures of installation and some of the construction of console.
Toyota Tundra Radio Installation – KG4SNN
